Mongoose Signal Strength Meter
The Mongoose Signal Strength Meter is a light-weight, hand-held receiver that’s ideal for quick indoor sweeps by propagators. A removable/rechargeable battery allows users to quickly get back out into the field for taking measurements all day. Mongoose displays the strongest 3 channels simultaneously for instant comparison. Scan table data may even be uploaded to Mongoose via the included software.
- Information
- Technical Details
- Technical Specs
- Gallery
- Videos
- Downloads
- Reviews
Signal Strength Meter
| GENERAL SPECIFICATIONS: | |
| Dual Conversion | 83 MHz first IF, 455 kHz second IF |
| IF Bandwidth | 12.5 kHz (standard) |
| Stability | + 2.5 PPM from freezing to 120 degrees F |
| Phase Noise | > 80 dBc @ 1 kHz offset |
| Antenna | TNC 50 ohm whip straight |
| Warm-up Time | < 1 minute |
| Power | 12 volt battery |
| Weight | < 5 pounds |
| PERFORMANCE: | |
| Display | 128 x 128 LED backlit display |
| Tuning Range | 20-40 MHz tuning range of band |
| Audio | Via internal speaker or headphones |
| Sensitivity | -115 to -35 dB + 1.5 dB (10 kHz IF bandwidth, 12 dB SINAD) |
| Adj. Chan. Rejection | > 50 dB @ 30 kHz bandwidth |
| Measurement Accuracy | + 1.5 dB |
| Measurement Speed | Adjustable |
| Channel Scan Rate | 20 channels/second (typical) |
| INCLUDES: | |
| Antenna | Right angle TNC 50 ohm whip antenna |
| Case | Yellow ABS plastic case |
| Battery | Rechargeable Ni-Cad battery and charger |
| OPTIONS: | |
| IF Bandwidth | 4 kHz, 10 kHz, 25 kHz, 30 kHz |
| Each dBm sample saved or displayed is the average of 128 A to D readings. This average is used to find the nearest “best” fit to the calibration data saved (to within 1 dB). The time between measurements is as follows: | |
| Measurement | Time between measurements saved in onboard FLASH |
| 1 channel | 1 second |
| 3 channel | 1 second |
| Scan Table | 28 channels per second, 2.8 seconds (worst case, all 80 channels measured). |
Frequencies
- PCS Uplink (Blocks A through F) 1850-1910 MHz
- Downlink (Blocks A through F)1930-1995 MHz
- Cellular 824-848, 868-896 MHZ
- Fixed Wireless
- Paging 145-165, 450-465, 928-941 MHZ
- LMR 805-825, 850-870 MHZ
- IVDS 218-219 MHZ
- SMR 850-870 MHz
- ISM 900-930 MHz, 2.400-2.485 GHz
- IDEN/SMR 850-870 MHz
- ETACS 872-905 MHz, 915-950 MHz
- WCS 2.30-2.36 GHz
- Other custom frequencies available upon request
There are no videos available for this product.
Mongoose User Manual
Version:
0.0.0
Platform:
N/A

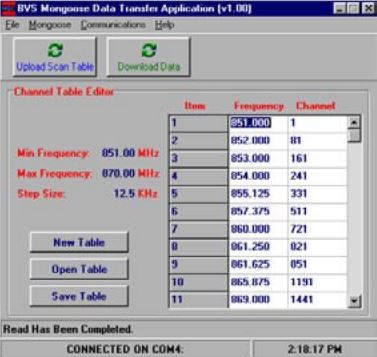

Mongoose Data Transfer
Version:
0.0.0
Platform:
N/A
There are no reviews available for this product.
Technical Details
Scans All Channels
Scans up to 21 channels and displays best 3 channels simultaneously.
Internal Storage
Internal memory stores signal strength. Data can be output to a PC with a serial cable.
Audio Output
Audio can be heard through the headphones or internal speaker. Includes rechargeable Ni-Cad battery/charger and weighs under 5 pounds.
