Name: Octopus 4G LTE Signal Meter
Rating: 5 (13 reviews)

Octopus LPWAN Surveyor IoT Signal Meter

Berkeley Varitronics Systems — Tue, 26 Aug 2025 20:34:51 +0000

Octopus LPWAN SurveyorIoT Signal Meter

From: $2,100.00

Octopus LPWAN Surveyor Signal Meter optimizes IoT wireless networks and antenna alignments for GSM, CAT-M1 and NB-IoT measurements. Octopus LPWAN Surveyor is ideal for wireless site surveys and antenna alignment for IoT devices including smart lights, appliances, connected vehicles, smart homes and cities.

Buy Now

Request a Quote

Octopus LPWAN Surveyor Signal Meter is designed for both professional and non-professional installers that need to verify the strongest signal for IoT (Internet of Things) devices including smart lights, smart cities, smart traffic, smart vehicles and smart homes. Octopus LPWAN Surveyor measures GSM, CAT-M, and NB-IoT signal strength in real time RSRQ, RSRP and RSSI making it ideal for IoT installations sites and antenna alignments. Octopus ships with everything you need to get started including a rugged carrying case, charging dock, antenna and PC software for export of measurements for further analysis.

Octopus LPWAN Surveyor Signal Meter steps users through a series of simple menu choices starting with carrier. If you already have a contract with a specific wireless carrier or your cell signal booster only supports that carrier, you can select that carrier and continue. If you’re not sure which carrier is best for your cell booster installation, you can quickly scan all nearby carriers and sort results instantly by carrier name, frequency band or signal strength using Octopus’ color touchscreen. Octopus measures 2G/3G/4G LTE all in one unit making it ideal for migrating from older to newer cellular networks. Once you’ve selected a carrier, Octopus will display bright signal strength in real time with peak measurement as well as large text including carrier name, band number and RSSI signal strength.

Octopus Worldwide Signal Meter includes a standard SMA connector allowing a direct connection to any antenna including directional antennas usually mounted outside. Simply connect antenna line into Octopus, locate the cellular base station signal that you want to boost and go to the antenna alignment screen. From there, you receive instant measurements as you adjust your antenna for maximum signal strength. If you do not know where the best wireless base station is located, you can quickly search in every direction using a direction finding antenna and Octopus in DF mode.

Technical Specifications:

GENERAL SPECIFICATIONS

2G/3G/4G/5G NETWORK SUPPORT:	CAT-M1 NB-IoT GSM
2G FREQUENCY SUPPORT (MHz)	850, 900, 1800, 1900
CAT-M1 LTE BANDS:	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85, B8_39d
NB-IoT 4G LTE BANDS:	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B71, B85, B8_39d
DUAL MODE: LTE-M/NB-IoT NB-IoT:	B1, B2, B3, B4, B5, B8, B8_US, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85, B103
2G BAND SUPPORT:	B2, B3, B5, B8
4G LTE MEASUREMENTS:	RSSI in dB
GENERAL SPECIFICATIONS:
Antenna:	Multi-band SMA 50 Ohm
Controls:	Color touchscreen
USB Port:	Trickle charges unit Updates firmware Export measurements to Windows PC
Alerts:	Audible beeps and vibrating alerts
Warm-up Time:	< 1 minute
Runtime:	~6 hours on a full charge
Power:	Internal Li-Po battery systems with 12V jack for external power and charging dock
Display:	320 x 240 resistive LCD touchscreen
Weight:	1 lbs.
Dimensions:	5.5″ x 3″ x 1.25″
INCLUDED ACCESSORIES
Rugged Carrying Case, AC Charging Dock, (1) Omni-Directional Multi-Band SMA Antenna, Windows PC data logging software utility
OPTIONAL ACCESSORIES
DF Antenna	Direction Finding Antenna

Evolution of Octopus 4G Signal Meter

Octopus LPWAN Surveyor IoT Signal Meter

Optional

Version:

0.0.0

Platform:

N/A

View Specification Sheet

Download V1.09 Firmware

Download Manual

PC Logging Software

Instructions For PC Logging Software Instructions

There are no reviews available for this product.

Technical Details

IoT Network Support

Measure IoT devices for applications including smart cars, cities, lights, traffic, appliances and more.

Easy To Use

No subscriptions, SIM cards, phones or apps required to get started. Scan all nearby IoT networks and devices in seconds.

Sort Your Standard

Detect and sort Cat-M, GSM or NB-IoT Internet of Things measurements to determine the best standard for your device connection.

Export Data

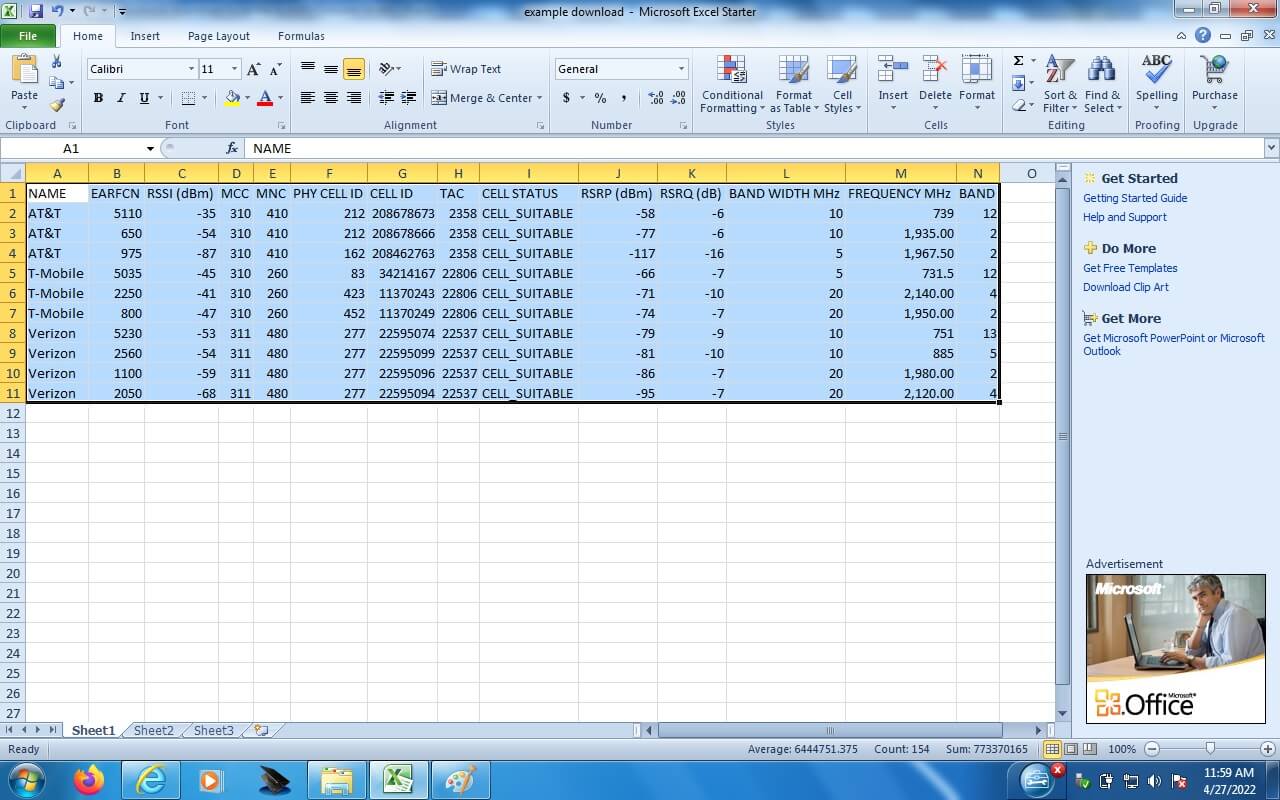

Export all cellular measurements to included Windows® PC software for further analysis.

Direction Finding

Supports direction finding antenna for pinpointing distant networks and IoT antenna alignments.

What kind of IoT can Octopus detect?

Octopus detects GSM, CAT-M1 and NB-IoT protocols and allows the user to sort them by signal strength.

What does this kit include?

Octopus includes the unit, charging cradle, SMA cable, omni-directional antenna and rugged transport case.

What kind of devices use IoT?

Any device described as a “smart” device generally uses some kind of IoT (Internet of Things) protocol including household appliances, security cameras, vehicles, lighting, traffic managements systems and even entire smart cities.

Does Octopus LPWAN export measurement data to a PC?

Octopus supports connection to a Windows PC for data export.

Buy Octopus LPWAN Surveyor IoT Signal Meter

From: $2,100.00

Octopus Protective Pouch (Orange)

Add for $45.00

Octopus Protective Pouch (Black)

Add for $45.00

Octopus LPWAN Surveyor Extended Warranty (1 Year)

Add for $252.00 each

Octopus LPWAN Surveyor Extended Warranty (2 Year)

Add for $378.00 each

Octopus Direction Finding Wideband Antenna

Add for $550.00 each

Also available on Amazon

Buy Now

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post Octopus LPWAN Surveyor IoT Signal Meter appeared first on Berkeley Varitronics Systems.

Octopus Worldwide Signal Meter

Berkeley Varitronics Systems — Tue, 26 Aug 2025 18:00:40 +0000

Octopus Worldwide2G/3G/4G LTE Signal Meter

From: $2,100.00

Octopus Worldwide 2G/3G/4G Signal Meter optimizes wireless installation sites and antenna alignments for cellular base stations in regions around the world including EU, Asia, Latin America, Africa, Middle East and US and Canada. Octopus Worldwide is ideal for cellular site survey and antenna alignment in EV charging stations and vital services including security and fire alarms, utility smart meters and more.

Buy Now

Request a Quote

Octopus Worldwide Signal Meter is designed for both professional and non-professional installers that need to verify the strongest signal for weBoost, WilsonPro, EZ4G, HiBoost, SureCall and many other cellular repeater systems. Octopus measures RSSI 2G, 3G and 4G LTE signal strength in real time making it ideal for migrating from 3G to 4G networks. Octopus ships with everything you need to get started including a rugged carrying case, charging dock, antenna and PC software for export of measurements for further analysis.

Octopus Worldwide Signal Meter optimizes wireless installation sites and antenna alignments for EV charging stations and vital services including security and fire alarms, wireless video camera feeds, utility smart meters, elevators, emergency phones, medical emergency services, carbon monoxide detectors and more. Cell signal boosters are popular in areas where cellular coverage is spotty or weak and can greatly boost any mobile signal. Do you trust your smartphone’s field test mode or signal bars? It is limited to your phone’s particular antenna design, speed and carrier. Field test mode (FTM) apps and signal bars do not deliver accurate realtime measurements required for cell signal booster installations.

Octopus Worldwide Signal Meter helps ChargePoint Operators and Installers measure nearby cellular base stations and directional antenna alignment necessary for site surveys for remote wireless networks including Tesla Supercharger locations and ChargePoint EV charging stations. Octopus ships with everything you need to get started including a rugged carrying case, charging dock, antenna and PC software for export of measurements for further analysis.

Octopus Worldwide Signal Meter steps users through a series of simple menu choices starting with carrier. If you already have a contract with a specific wireless carrier or your cell signal booster only supports that carrier, you can select that carrier and continue. If you’re not sure which carrier is best for your cell booster installation, you can quickly scan all nearby carriers and sort results instantly by carrier name, frequency band or signal strength using Octopus’ color touchscreen. Octopus measures 2G/3G/4G LTE all in one unit making it ideal for migrating from older to newer cellular networks. Once you’ve selected a carrier, Octopus will display bright signal strength in real time with peak measurement as well as large text including carrier name, band number and RSSI signal strength.

Technical Specifications:

GENERAL SPECIFICATIONS

REGIONS SUPPORTED:	Central/South America \| Asian Pacific \| EU/Middle East/Africa \| US/Canada
2G BANDS SUPPORTED:	B2 1900 MHz, B3 (1800 MHz), B5 (850 MHz) B8 (900 MHz)
3G BANDS SUPPORTED:	B1 (2100 MHz), B2 (1900 MHz), B5 (850 MHz), B8 (900 MHz)
4G BANDS SUPPORTED:	B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 Mhz), B28 (700 MHz)
RECEIVER MODES:	Passive only (does not transmit nor require a SIM card)
2G/3G/4G LTE MEASUREMENTS:	RSSI
Antenna:	Multi-band SMA 50 Ohm
Controls:	Color touchscreen
USB Port:	Firmware updates (support@bvsystems.com for more info)
Alerts:	Audible beeps and vibrations
Warm-up Time:	< 1 minute
Runtime:	>10 hours on a full charge
Power:	Internal Li-Po battery systems with 12V jack for external power and charging dock
Display:	320 x 240 resistive LCD touchscreen
Weight:	1 lbs.
Dimensions:	5.5″ x 3″ x 1.25″
INCLUDED ACCESSORIES
Rugged Carrying CaseAC Charging Dock(1) Omni-Directional Multi-Band SMA AntennaWindows PC data logging software utility
OPTIONAL ACCESSORIES
DF Antenna	Direction Finding Antenna

Evolution of Octopus 4G Signal Meter

Octopus Worldwide 2G/3G/4G LTE Signal Meter

Optional

Version:

0.0.0

Platform:

N/A

Download Specification Sheet

Download Software

Download Manual

Update Instructions

There are no reviews available for this product.

Technical Details

Worldwide Cellular Support

Supports major carriers across Latin America, Asia, EU, Mideast, Africa and North America.

Easy To Use

No subscriptions, SIM cards, phones or apps required to get started. Scan all nearby base stations in seconds.

Choose Your Region

With worldwide support, simply choose your region and travel there to take realtime measurements.

Export Data

Export all cellular measurements to included Windows® PC software for further analysis.

Direction Finding

Supports direction finding antenna for pinpointing distant base stations and antenna alignments.

What carriers can Octopus Worldwide detect?

Octopus detects all major carriers including AT&T, Verizon and T-Mobile as well as China Mobile, Vodafone (UK, multiple countries), Telefónica (Spain, Latin America), Deutsche Telekom (Germany, multiple countries), América Móvil (Latin America), Airtel (India/Africa), NTT, Reliance Jio (india), MTN (Africa) and many more.

What does this kit include?

Octopus includes the unit, charging cradle, SMA cable, omni-directional antenna and rugged transport case.

Does Octopus Worldwide require any kind of subscription or SIM card to operate?

No. Octopus requires no subscriptions, SIM cards, phones or apps to get operate.

Does Octopus export measurement data to a PC?

Octopus supports connection to a Windows PC for data export.

Buy Octopus Worldwide Signal Meter

From: $2,100.00

Octopus Protective Pouch (Orange)

Add for $45.00

Octopus Protective Pouch (Black)

Add for $45.00

Octopus Worldwide Extended Warranty (1 Year)

Add for $252.00 each

Octopus Worldwide Extended Warranty (2 Year)

Add for $378.00 each

Octopus Direction Finding Wideband Antenna

Add for $550.00 each

Also available on Amazon

Buy Now

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post Octopus Worldwide Signal Meter appeared first on Berkeley Varitronics Systems.

RedFrog Wideband Power Meter

Berkeley Varitronics Systems — Wed, 10 Jul 2024 21:27:53 +0000

RedFrogWideband Power Meter

From: $3,295.00

RedFrog wideband power meter measures between 700 MHz and 6000 MHz digital and analog power output up to 250 watts. The handheld, calibrated unit features touchscreen operation, internal battery power and USB port for PC software for external monitoring and control.

Buy Now

Request a Quote

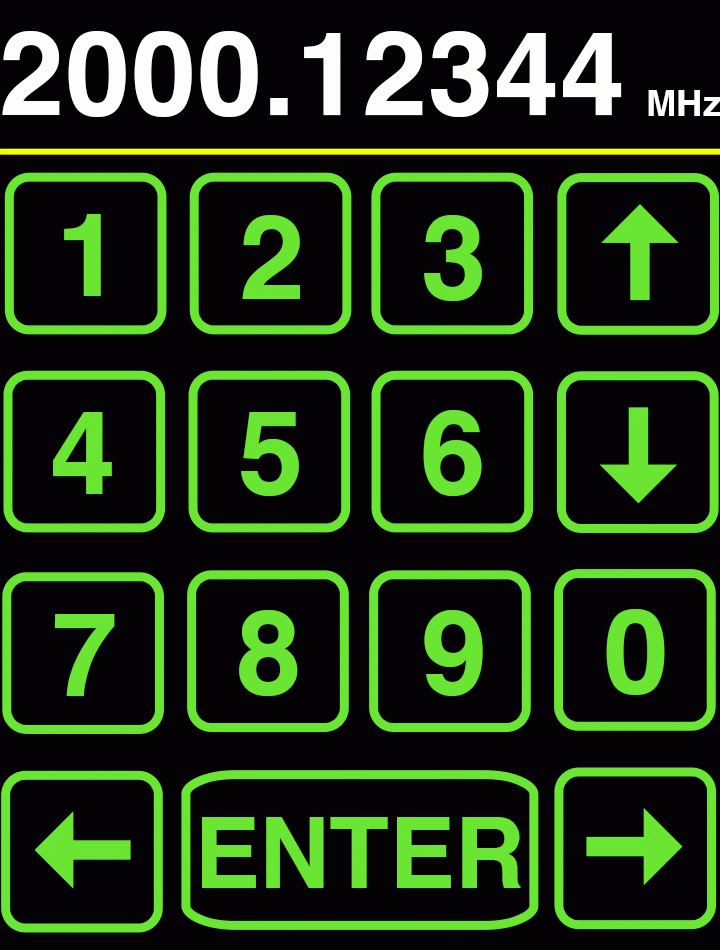

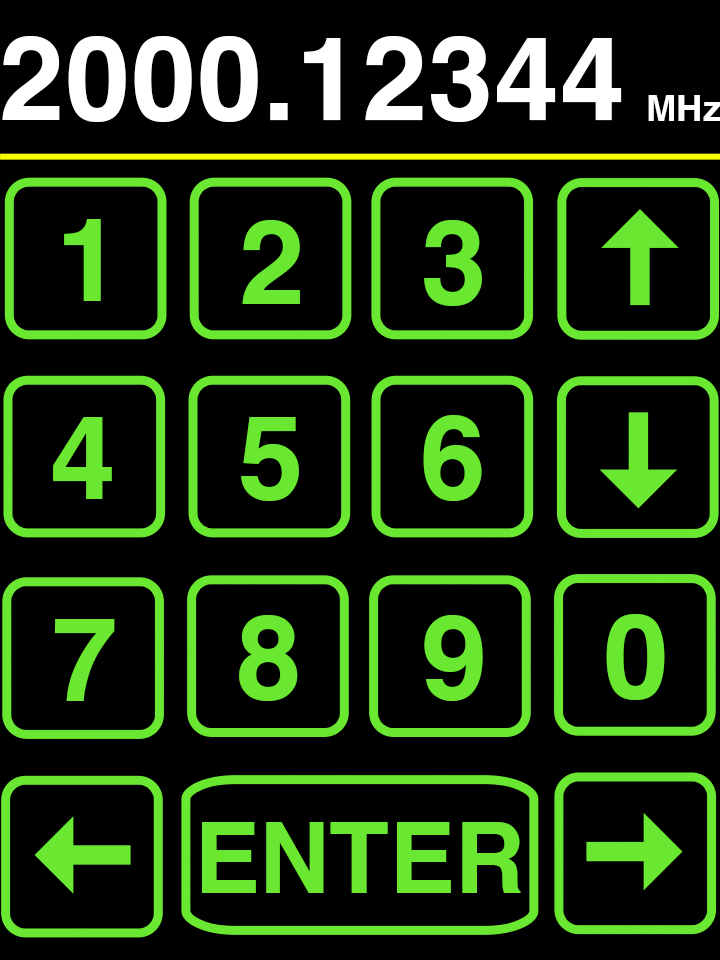

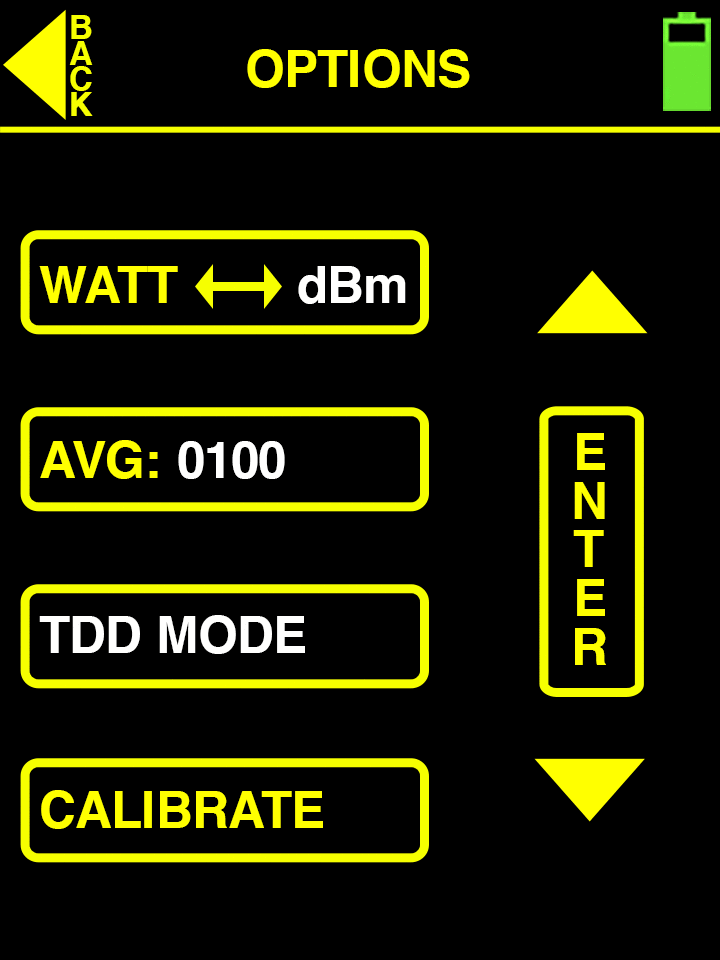

The touchscreen control allows user control over all power measurement functions including direct frequency input, Watts to dBm conversions and screen flip view from portrait to landscape (and back again) for power measurement environments that do not allow for easy manipulation of the unit.

RedFrog measures true average power (forward and reflected power), shows VSWR and is the perfect wideband power meter for Giant Tortoise, Tortoise or Dragon stimulus transmitters or any transmitter with a standard type ‘N’ connector for instant verification of wired power levels displayed in dBm or Watts.

RedFrog measures forward, reflected and true average power as well as VSWR. RedFrog ships complete with rugged travel case (Pelican 1200), PC software, calibration certificate, power transformer and Type N adapter plug.

Technical Specifications:

FREQUENCY RANGE	700 MHz to 6000 MHz
FREQUENCY RESOLUTION	2.5 kHz
RF INPUT RANGE	from 0 dBm to 54 dBm (1 mW to 250 Watts)
INPUT SIGNAL	CW, GSM, CDMA, WiMAX, LTE TDD, etc.
MEASUREMENT ACCURACY	Better than 0.65 dBm in range 0 dBm to 54 dBm
MEASUREMENT RESOLUTION	0.1 dBm
REFLECTED POWER	0 dBm to 54 dBm
MEASUREMENT VSWR	1.2 to 199
MEASUREMENT SPEED	1500 samples per second in range of 0 to 54 dBm
MEASUREMENT AVERAGING	100 to 1000 samples
COUPLER INPUT IMPEDENCE	50 Ohm Type N, Bi-Directional High Power Coupler
COUPLER INPUT VSWR	Less than 1.15
COUPLER INSERTION LOSS	Less than 0.2 dB
RF COUPLER DIRECTIVITY	Higher than 25 dB for 700 – 3000 MHzHigher than 19 dB for 3 – 6 GHz
MAX INPUT/PROTECTION	250 Watts for 60 seconds
GENERAL SPECIFICATIONS:
OPERATING TEMPERATURE	-10º to +45º C
STORAGE TEMPERATURE	-20º to +70º C
SIZE	1.45″ H x 5.4″ W x 5.5″ D
WEIGHT	1.6 Lbs.
POWER	Internal battery, runtime 4-5 hours or external power DC 12 volts
PC CONTROL PLATFORM	Setup RedFrog, logging data, graphical power measurements over time

RedFrog Wideband Power Meter Teaser

RedFrog Wideband Power Meter

Optional

Version:

0.0.0

Platform:

N/A

View Product Spec Sheet

Download Software

Download Manual 1.3

Update Instructions

There are no reviews available for this product.

Technical Details

Wideband Measurements

Measure 700 MHz and 6000 MHz digital and analog power output up to 250 watts.

Built-in Touchscreen

Easy to use touchscreen interface for fast navigation and operation.

Power and Remote Monitoring

USB port for remote control and monitoring of all power meter functions from a distance.

Internal Rechargeable Battery

High capacity internal Li-Po rechargeable battery for all day use.

Rugged & More

Ships with rugged travel case, calibration certificate, power transformer and Type N adapter plug.

RedFrog Wideband Power Meter

From: $3,295.00

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post RedFrog Wideband Power Meter appeared first on Berkeley Varitronics Systems.

Octopus 4G LTE Public Safety Signal Meter

Berkeley Varitronics Systems — Wed, 10 Jul 2024 21:26:36 +0000

Octopus Public Safety 4G LTE Signal Meter

From: $2,100.00

Octopus 4G LTE Public Safety Signal Meter optimizes wireless installation sites and antenna alignments for FirstNet emergency services and first responders on band 14 as well as EV charging stations and vital services including security and fire alarms, utility smart meters and more.

Buy Now

Request a Quote

Octopus is also designed for both professional and non-professional installers that need to verify the strongest signal for weBoost, WilsonPro, EZ4G, HiBoost, SureCall and many other cellular repeater systems. Octopus measures RSSI, RSRP and RSRQ 4G LTE signal strength in real time making it ideal for migrating from 3G to 4G networks. Octopus ships with everything you need to get started including a rugged carrying case, charging dock, antenna and PC software for export of measurements for further analysis.

Octopus 4G LTE Public Safety Signal Meter optimizes wireless installation sites and antenna alignments for FirstNet Authority emergency services and first responders as well as EV charging stations and vital services including security and fire alarms, utility smart meters, elevators, emergency phones, medical emergency services, carbon monoxide detectors and more. Cell signal boosters are popular in areas where cellular coverage is spotty or weak and can greatly boost any mobile signal. Do you trust your smartphone’s field test mode or signal bars? It is limited to your phone’s particular antenna design, speed and carrier. Field test mode (FTM) apps and signal bars do not deliver accurate realtime measurements required for cell signal booster installations.

Octopus helps Charge Point Operators and Installers measure nearby cellular base stations and directional antenna alignment necessary for site surveys for remote wireless networks including Tesla Supercharger locations and ChargePoint EV charging stations. Octopus ships with everything you need to get started including a rugged carrying case, charging dock, antenna and PC software for export of measurements for further analysis.

Octopus steps users through a series of simple menu choices starting with carrier. If you already have a contract with a specific wireless carrier or your cell signal booster only supports that carrier, you can select that carrier and continue. If you’re not sure which carrier is best for your cell booster installation, you can quickly scan all 4G (LTE) carriers and sort results instantly by carrier name, frequency band or signal strength using Octopus’ color touchscreen. Octopus measures 4G LTE all in one unit making it ideal for migrating from older 3G to newer 4G networks. Once you’ve selected a carrier, Octopus will display bright signal strength in real time with peak measurement as well as large text including carrier name, band number and signal strength in RSRP and RSRQ.

Octopus includes a standard SMA connector allowing a direct connection to any antenna including directional antennas usually mounted outside. Simply connect antenna line into Octopus, locate the cellular base station signal that you want to boost and go to the antenna alignment screen. From there, you receive instant measurements as you adjust your antenna for maximum signal strength. If you do not know where the best wireless base station is located, you can quickly search in every direction using a direction finding antenna and Octopus in DF mode.

Technical Specifications:

GENERAL SPECIFICATIONS

4G BANDS SUPPORTED:	B12/B17 (700), B2 (1900), B5 (850), B13 (700), B4 (AWS 1700)

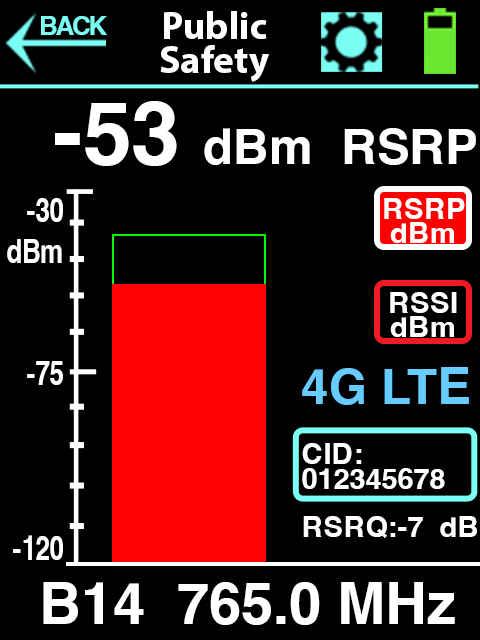

FIRSTNET AT&T BANDS SUPPORTED:	B14 (758-768, 788-798 MHz)
RECEIVER MODES:	Passive only (does not transmit nor require a SIM card)

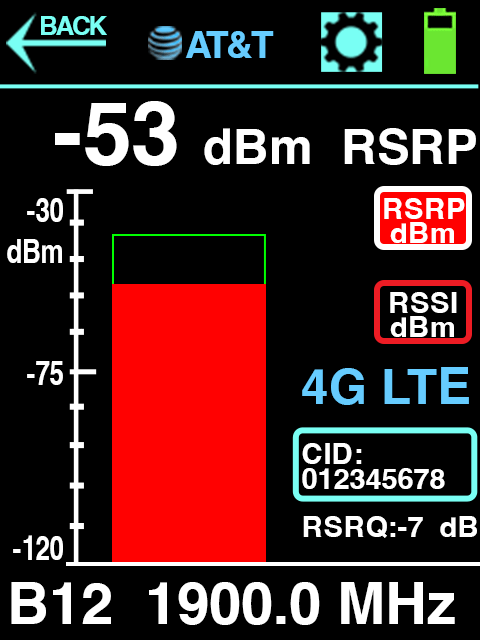

4G LTE MEASUREMENTS:	RSRP, RSRQ, RSSI
Antenna:	Multi-band SMA 50 Ohm
Controls:	Color touchscreen
USB Port:	Firmware updates (support@bvsystems.com for more info)
Alerts:	Audible beeps and vibrations
Warm-up Time:	< 1 minute
Runtime:	>10 hours on a full charge
Power:	Internal Li-Po battery systems12V jack for external power and charging dock
Display:	320 x 240 resistive LCD touchscreen
Weight:	1 lbs.
Dimensions:	5.5″ x 3″ x 1.25″
INCLUDED ACCESSORIES
Rugged Carrying CaseAC Charging Dock(1) Omni-Directional Multi-Band SMA AntennaWindows PC data logging software utility
OPTIONAL ACCESSORIES
DF Antenna	Direction Finding Antenna

Evolution of Octopus 4G Signal Meter

Meet your new wireless installation tool

Evolution of Octopus 4G Signal Meter

Emergency First Responders Need Pro Tools

Octopus Public Safety

Optional

Version:

0.0.0

Platform:

N/A

View Product Spec Sheet

Download Quick User Guide

Download Software

Download Manual 1.8

Update Instructions

Octopus PC Software

Standard

Version:

0.0.0

Platform:

N/A

Download Software

Download Manual 1.8

Update Instructions

There are no reviews available for this product.

Technical Details

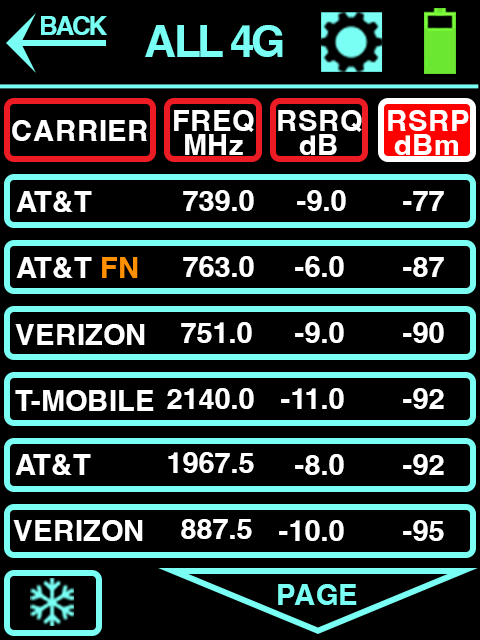

All U.S. regional carriers

Supports all major US carriers AT&T, Verizon, T-Mobile including FirstNet (Band 14) for emergency responders

Easy To Use

No subscriptions, SIM cards, phones or apps required to get started. Scan all nearby 3G and 4G base stations in seconds.

Emergency Response

Perfect for emergency response network optimization as well as cellular boosters, EV charging sites, utility telematics, wireless alarm installs and more.

Export Data

Export all cellular measurements to included Windows® PC software for further analysis.

Direction Finding

Supports direction finding antenna for pinpointing distant base stations and antenna alignments.

Does Octopus Public Safety detect FirstNet?

Yes, Octopus detects and displays FirstNet emergency services and first responders on band 14.

What carriers can Octopus detect?

Octopus detects all major carriers including AT&T, Verizon and T-Mobile as well as many regional U.S. carriers.

What does this kit include?

Octopus 4G Signal Meter Kit includes the unit, charging cradle, SMA cable, omni-directional antenna and rugged transport case.

Can Octopus detect cellular networks outside of the U.S.?

Contact sales@bvsystems.com and provide your region so that we can provide you with a solution.

Does Octopus require any kind of subscription or SIM card to operate?

No. Octopus requires no subscriptions, SIM cards, phones or apps to get operate.

Does Octopus export measurement data to a PC?

Octopus supports connection to a Windows PC for data export.

Buy Octopus 4G LTE Public Safety Signal Meter

From: $2,100.00

Octopus Protective Pouch (Orange)

Add for $45.00

Octopus Protective Pouch (Black)

Add for $45.00

Octopus 4G LTE Public Safety Extended Warranty (1 Year)

Add for $252.00

Octopus 4G LTE Public Safety Extended Warranty (2 Year)

Add for $378.00 each

Octopus Direction Finding Wideband Antenna

Add for $550.00 each

Also available on Amazon

Buy Now

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post Octopus 4G LTE Public Safety Signal Meter appeared first on Berkeley Varitronics Systems.

Octopus 4G LTE Signal Meter Kit

Berkeley Varitronics Systems — Wed, 10 Jul 2024 21:20:16 +0000

Octopus 4G LTE Signal Meter Kit

From: $2,050.00

Octopus 4G LTE Signal Meter Kit optimizes wireless installation sites and antenna alignments for EV charging stations and vital services including security and fire alarms, utility smart meters and more. Octopus 4G LTE Signal Meter Kit ships with everything you need to get started including a rugged Pelican® carrying case, charging dock, DF antenna and PC software for export of measurements for further analysis.

Buy Now

Request a Quote

Octopus is also designed for both professional and non-professional installers that need to verify the strongest signal for weBoost, WilsonPro, EZ4G, Flare, HiBoost, SureCall Fusion4Home and many other 4G cellular repeater systems. Cell signal boosters are popular in areas where cellular coverage is spotty or weak and can greatly boost any mobile signal. Do not trust your smartphone’s field test mode or signal bars? It is limited to your phone’s particular antenna design, speed and carrier. Field test mode (FTM) or field test display (FTD) and signal bars do not deliver accurate realtime measurements required for cell signal booster installations. Octopus measures nearby cellular base stations and directional antenna alignment necessary for installing and optimizing cellular signal boosters as well as site surveys for remote wireless networks including Tesla Supercharger locations and ChargePoint EV charging stations.

PRODUCT SPECIFICATIONS:

4G BANDS SUPPORTED	B12/B17 (700), B2 (1900), B5 (850), B13 (700), B4 (AWS 1700)
RECEIVER MODES:	Passive only (does not transmit nor require a SIM card)
4G LTE MEASUREMENTS:	RSRP, RSRQ, RSSI
GENERAL SPECIFICATIONS
Antenna:	Multi-band SMA 50 Ohm
Controls:	Color touchscreen
USB Port:	Firmware updates (support@bvsystems.com for more info)
Alerts:	Audible beeps and vibrations
Warm-up Time	< 1 minute
Runtime:	>10 hours on a full charge
Power:	Internal Li-Po battery systems12V jack for external power and charging dock
Display:	320 x 240 resistive LCD touchscreen
Weight:	1 lbs.
Dimensions:	5.5″ x 3″ x 1.25″
INCLUDED ACCESSORIES
Rugged Pelican 1500 Case with pulled foam inserts for all accessoriesAC Charging Dock(1) Omni-Directional Multi-Band SMA Antenna(1) Wide Band Direction Finding Antenna, handle and cable

Evolution of Octopus 4G Signal Meter

Meet your new wireless installation tool

Evolution of Octopus 4G Signal Meter

Emergency First Responders Need Pro Tools

This device is your wireless test solution for IoT and cellular networks

4G signal meter for Iot EV charger, alarm and wireless installations

How to export Octopus data to spreadsheet

Octopus Firmware Update

Standard

Version:

0.0.0

Platform:

N/A

View Product Spec Sheet View

Quick User Guide

Download Software 2.04

Download Manual 1.8

Update Instructions

Octopus PC Software

Standard

Version:

0.0.0

Platform:

N/A

Download Software

Download Manual 1.8

Update Instructions

There are no reviews available for this product.

Technical Details

All U.S. regional carriers

Supports all major US carriers AT&T, Verizon, T-Mobile including FirstNet (Band 14) for emergency responders

Easy To Use

No subscriptions, SIM cards, phones or apps required to get started. Scan all nearby 3G and 4G base stations in seconds.

Comprehensive Kit

Complete kit includes rugged transport case, receiver unit and direction finding antenna for precise antenna alignment.

Export Data

Export all cellular measurements to included Windows® PC software for further analysis.

What carriers can this detect?

Octopus detects all major carriers including AT&T, Verizon and T-Mobile as well as many regional U.S. carriers.

What does this kit include?

Octopus 4G Signal Meter Kit includes the unit, charging cradle, SMA cable, omni-directional antenna, wideband direction finding antenna and rugged transport case.

Can Octopus detect cellular networks outside of the U.S.?

Contact sales@bvsystems.com and provide your region so that we can provide you with a solution.

Does Octopus require any kind of subscription or SIM card to operate?

No. Octopus requires no subscriptions, SIM cards, phones or apps to get operate.

Does Octopus export measurement data to a PC?

Octopus supports connection to a Windows PC for data export.

Octopus 4G LTE Signal Meter Kit

From: $2,050.00

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post Octopus 4G LTE Signal Meter Kit appeared first on Berkeley Varitronics Systems.

Octopus 4G LTE Signal Meter

Berkeley Varitronics Systems — Wed, 10 Jul 2024 21:19:19 +0000

Octopus Octopus 4G LTE Signal Meter

From: $1,750.00

Octopus 4G LTE Signal Meter optimizes wireless installation sites and antenna alignments for EV charging stations and vital services including security and fire alarms, utility smart meters and more. Octopus is also designed for both professional and non-professional installers that need to verify the strongest signal for weBoost, WilsonPro, EZ4G, HiBoost, SureCall and many other cellular repeater systems. Octopus measures RSSI, RSRP and RSRQ 4G LTE signal strength in real time making it ideal for migrating from 3G to 4G networks. Octopus ships with everything you need to get started including a rugged carrying case, charging dock, antenna and PC software for export of measurements for further analysis.

Buy Now

Request a Quote

Octopus 4G LTE Signal Meter optimizes wireless installation sites and antenna alignments for EV charging stations and vital services including security and fire alarms, elevators, emergency phones, medical emergency services, carbon monoxide detectors and more. Octopus is also designed for both professional and non-professional installers that need to verify the strongest signal for weBoost, WilsonPro, EZ4G, Flare, HiBoost, SureCall Fusion4Home and many other 4G cellular repeater systems. Cell signal boosters are popular in areas where cellular coverage is spotty or weak and can greatly boost any mobile signal. Do you trust your smartphone’s field test mode or signal bars? It is limited to your phone’s particular antenna design, speed and carrier. Field test mode (FTM) apps and signal bars do not deliver accurate realtime measurements required for cell signal booster installations. Octopus helps Charge Point Operators and Installers measure nearby cellular base stations and directional antenna alignment necessary for site surveys for remote wireless networks including Tesla Supercharger locations and ChargePoint EV charging stations. Octopus ships with everything you need to get started including a rugged carrying case, charging dock, antenna and PC software for export of measurements for further analysis.

Learn more about Octopus used in EV charging station installations

PRODUCT SPECIFICATIONS:

GENERAL SPECIFICATIONS

4G BANDS SUPPORTED:	B12/B17 (700), B2 (1900), B5 (850), B13 (700), B4 (AWS 1700)
RECEIVER MODES:	Passive only (does not transmit nor require a SIM card)
4G LTE MEASUREMENTS:	RSRP, RSRQ, RSSI
Antenna:	Multi-band SMA 50 Ohm
Controls:	Color touchscreen
USB Port:	Firmware updates (support@bvsystems.com for more info)
Alerts:	Audible beeps and vibrations
Warm-up Time:	< 1 minute
Runtime:	>10 hours on a full charge
Power:	Internal Li-Po battery systems12V jack for external power and charging dock
Display:	320 x 240 resistive LCD touchscreen
Weight:	1 lbs.
Dimensions:	5.5″ x 3″ x 1.25″
INCLUDED ACCESSORIES
Rugged Carrying CaseAC Charging Dock(1) Omni-Directional Multi-Band SMA AntennaWindows PC data logging software utility
OPTIONAL ACCESSORIES
DF Antenna	Direction Finding Antenna

Evolution of Octopus 4G Signal Meter

Meet your new wireless installation tool

Evolution of Octopus 4G Signal Meter

Emergency First Responders Need Pro Tools

This device is your wireless test solution for IoT and cellular networks

4G signal meter for Iot EV charger, alarm and wireless installations

How to export Octopus data to spreadsheet

Octopus Firmware Update

Standard

Version:

0.0.0

Platform:

N/A

View Product Spec Sheet View

Quick User Guide

Download Software 2.04

Download Manual 1.8

Update Instructions

Octopus PC Software

Standard

Version:

0.0.0

Platform:

N/A

Download Software

Download Manual 1.8

Update Instructions

Excellent tool for carrier signal

Great tool for checking carrier signal. Very clear display and very receptive touch screen. Photos of the screen come out great and are required for our client.

Michael Bowen
Amazon Verified Purchase

Drop Dead Simple to Use

My company makes IoT sensors that use cellular data to communicate with the cloud. Bought this device to confirm signal strength and select the best provider for a site. High price made me think twice before purchasing, but the great reviews convinced me to go ahead and I’m glad I did.

This product is a classic case of “you get what you pay for.” It comes in a cushioned industrial grade carrying case that is ready to head to the field. Easy to use touch screen combined with a self-explanatory interface lets you get operational in seconds without having to spend a bunch of time reading manuals or searching the web for help. Results come within seconds and continuously update so you have a good idea of signal strength and variability within about a minute. I have not experimented with the data download feature, but expect that is excellent as well.

If you need a dependable tool rather than a toy, stop searching and buy this one!

rando06
Amazon Verified Purchase

Easy to use. Very intuitive and provides several methods to interpret relevant data

The product works well right out of the box. Charged it up and screwed on the antenna and it was ready to use. I like the fact that you can see multiple carriers or choose just one and can toggle through various signal types very easily. Lightweight and compact so it can be carried into the field. The graphics are clear and easy to read. I would recommend this product.

Kindle Customer
Amazon Verified Purchase

Excellent tool for carrier signal

Great tool for checking carrier signal. Very clear display and very receptive touch screen. Photos of the screen come out great and are required for our client.

Michael Bowen
Amazon Verified Purchase

Very Accurate across all bands

We used this for locating IOT devices

Juan O Rodriguez
Amazon Verified Purchase

Great tool for EV charging station signal confirmation

Don’t guess that you have a good signal for your EV charging station infrastructure. Know for certain which carriers are delivering a strong signal. This device delivers accurate data you can trust and have confidence in delivering deployments. Recommended!

John Truckenbrod
Amazon Verified Purchase

Best in the business

I have to often take cell readings for EV services. This product makes that a lot easier. I have used other cell readers and they don’t stand up to the octopus. The interface is easy to use, turns on and runs cell test quickly and the battery lasts. This makes taking multiple reading very effortless. Also comes in a very nice carrying case!

Matt S
Amazon Verified Purchase

Great device to determine best signal levels

Quick shipping and an overall great device. Makes checking for the best carrier signal a breeze.
Tim Molina
Amazon Verified Purchase

The first one worked so well, I now own 2!

Great for EV charging stations
Dana Hanson
Amazon Verified Purchase

Excellent tool for technicians

I purchased this meter for my pool of technicians to use for measuring cellular signal strength prior to quoting wireless DACTs. Quickly reduced/eliminated installing a product and finding out there is a signal coverage issue after the fact. Fantastic purchase for this application.
FACS San Antonio
Amazon Verified Purchase

Great product

Easy to use; use friendly
Training videos were great. I recommended to others.
Ana ngo
Amazon Customer

Easy to use. Very intuitive and provides several methods to interpret relevant data

The product works well right out of the box. Charged it up and screwed on the antenna and it was ready to use. I like the fact that you can see multiple carriers or choose just one and can toggle through various signal types very easily. Lightweight and compact so it can be carried into the field. The graphics are clear and easy to read. I would recommend this product.

Kindle Customer
Amazon Verified Purchase

Drop Dead Simple to Use

My company makes IoT sensors that use cellular data to communicate with the cloud. Bought this device to confirm signal strength and select the best provider for a site. High price made me think twice before purchasing, but the great reviews convinced me to go ahead and I’m glad I did.

This product is a classic case of “you get what you pay for.” It comes in a cushioned industrial grade carrying case that is ready to head to the field. Easy to use touch screen combined with a self-explanatory interface lets you get operational in seconds without having to spend a bunch of time reading manuals or searching the web for help. Results come within seconds and continuously update so you have a good idea of signal strength and variability within about a minute. I have not experimented with the data download feature, but expect that is excellent as well.

If you need a dependable tool rather than a toy, stop searching and buy this one!

rando06
Amazon Verified Purchase

Technical Details

All U.S. Regional Carriers

Supports all major US carriers AT&T, Verizon, T-Mobile including FirstNet (Band 14) for emergency responders

Easy To Use

No subscriptions, SIM cards, phones or apps required to get started. Scan all nearby 4G base stations in seconds.

Handheld Signal Meter

Handheld signal meter can be used all day on a charge. Optional direction antenna support.

Export Data

Export all cellular measurements to included Windows® PC software for further analysis. home.

4G Network Connectivity

Perfect for 4G cell booster installations, EV charging stations, smart parking meters, wireless alarms and security feeds and any M2M cellular network connectivity verification.

What carriers can Octopus detect?

Octopus detects all major carriers including AT&T, Verizon and T-Mobile as well as many regional U.S. carriers.

What does this kit include?

Octopus 4G Signal Meter Kit includes the unit, charging cradle, SMA cable, omni-directional antenna and rugged transport case.

Can Octopus detect cellular networks outside of the U.S.?

Contact sales@bvsystems.com and provide your region so that we can provide you with a solution.

Does Octopus require any kind of subscription or SIM card to operate?

No. Octopus requires no subscriptions, SIM cards, phones or apps to get operate.

Does Octopus export measurement data to a PC?

Octopus supports connection to a Windows PC for data export.

Octopus Signal Meter

From: $1,750.00

Octopus (1) Year Extended Warranty

Add for $210.00 each

Octopus (2) Year Extended Warranty

Add for $315.00 each

Octopus Direction Finding Wideband Antenna

Add for $550.00 each

Octopus Protective Pouch (Orange)

Add for $45.00

Octopus Protective Pouch (Black)

Add for $45.00

17 in stock (can be backordered)

Also available on Amazon

Buy Now

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post Octopus 4G LTE Signal Meter appeared first on Berkeley Varitronics Systems.

Squid-4G M2M Installation Tool

Kyrie Tompkins-Overlock — Wed, 10 Jul 2024 21:19:19 +0000

Squid-4G M2M Installation Tool

From: $0.00

The Squid-4G IoT-M2M installation tool is designed for 4G-LTE installers. This handheld cell tower tester identifies all 3 major 4G-LTE wireless carriers (AT&T, Verizon, & T-Mobile).

These signal strength measurements allow IoT-M2M installers to make informed decisions for site installation and antenna placement. Telit, Gemalto, Sierra Wireless and other major 4G modem manufacturers recommend Squid to maximize 4G network reliability.

This signal strength analysis allows critical decisions to be made before expensive deployment begins. It also allows the installers to build out M2M networks much faster. Gone are the days of relying on cheap consumer phones and their unreliable signal reception bars. Squid-4G-LTE simple pushbutton operation, menu navigation and super clear OLED screen make it the ideal handheld tool for any experience level.

For M2M 3G installations please see Squid-PRO cell tower tester M2M Installation Tool.

Evolution of Octopus 4G Signal Meter

EV charging station wireless site installs in 3 Easy Steps

Squid 3G and 4G IoT/M2M Installations in 3 Easy Steps for Smart Meters

Squid 3G and 4G M2M & IoT Installations in 3 Easy Steps for Wireless Kiosks

What’s New For M2M Network Installers At This Year’s CTIA Expo?

Squid Utility Software

Optional

Version:

0.0.0

Platform:

N/A

View Product Spec Sheet

Download Software

Squid-4G M2M Installation Tool

Standard

Version:

0.0.0

Platform:

N/A

View Product Spec Sheet

Download Quick User Guide

Download Software

Download Manual 1.4

Update Instructions

This tool has been very beneficial

After purchasing a Squid-Pro M2M Install Tool, our site surveys have become much more reliable, quicker, and cost effective. We are now able to accurately determine all available carriers, signal strength, and even the location of the tower. This tool has been very beneficial. This product is a great investment for anyone performing fixed site cellular M2M installations.”

Grant Mobley
Director of Operations AMCi

Technical Details

All Carriers

Measure all 3 major wireless carriers (AT&T, Verizon, & T-Mobile) with no SIM card activation required.

True RSRP & RSRP

Handheld, simple operation with true RSRP and RSSI values in dBm.

Data Export

Optional software exports data utilizing integrated GPS receiver.

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post Squid-4G M2M Installation Tool appeared first on Berkeley Varitronics Systems.

YellowFin LTE 4G Analyzer

Kyrie Tompkins-Overlock — Wed, 10 Jul 2024 21:16:54 +0000

YellowFin LTE 4G Analyzer

From: $0.00

YellowFin™ allows engineers and installers to optimize existing LTE networks for better coverage by including a spectrum analyzer and LTE packet demodulation all in one handheld unit.

YellowFin LTE 4G Analyzer is the world’s first truly portable calibrated, demodulating LTE test receiver. This handheld unit utilizes a tablet PC as an interface in conjunction with Berkeley’s precision receiver technology for complete spectrum analysis as well as LTE physical layer demodulation. The receiver sweeps the 700 MHz to 2.2 GHz or 2.0 GHz to 5.9 GHz spectrums (choose model) to within +1.5 dB accuracy measuring both primary & secondary synchronization signals for RSSI, Signal Quality/CINR and Multipath.

YellowFin-LTE™ spectrum analysis also performs interference detection, channel clearing with trigger/synchronization modes for LTE signal frequency analysis. LTE demodulates the physical layer for Identity, Cell Identity Group, Cell Identity, Extended CP, BS Antenna Count and PBCH Channel. The optional DF (Direction Finding) Antenna allows engineers to pinpoint sources of LTE interference, rogue base stations and even nearby hackers. An internal 12-channel/satellite GPS receiver allows for geo-coded site surveys and drive-studies using optional mapping software.

Bands Supported	MODEL C700 MHZ – 2.2 GHz	MODEL D2.0 GHz – 5.9 GHz
RF Sensitivity (Wide Band)	-20 to -90 dBm
RSSI (Channel)	-20 to -80 dBm
Correlated Multipath Measurements	0 to -10 dB
CINR	0 to +20 dBm
SPECTRUM ANALYZER SPECIFICATIONS:
Bands Supported	MODEL C700 MHZ – 2.0 GHz	MODEL D2.0 GHz – 5.9 GHz
Average Noise Floor (no input)	< -100 dBm (reference level -70 dBm, resolution bandwidth=50 kHz)
Dynamic Range	> 40 dB
Level Accuracy	+ 1.5 dB (25º C)
Max Input (safe)	+ 0 dBm
Max Input (no saturation)	-20 dBm
Reference Level	-20 to -70 dBm (10 dB steps)
TRIGGERING:
User Control	Auto or Manual
Packet/Interefrence Trigger	Trigger analyzer when input power meets or exceeds threshold (20 MHz span)
Trigger Threshold	User settable in dBm
Trigger Delay	User settable in mS
GENERAL SPECIFICATIONS:
Internal GPS Receiver	12-channel/satellite GPS receiver
Input Connector	SMA Female 50 ohm
Power	Li-PO, AC, DC
Runtime Internal Battery	> 3 hours
Recharge Time	< 3 hours
PHYSICAL SPECIFICATIONS:
Weight	5 lbs.
Dimensions	1.5″ H x 7.5″ W x 5″ L (water resistant, high-impact ABS plastic case)
OPTIONAL ACCESSORIES:
12V car adapter, 2.4 GHz Directional Finding Antenna, Directional Finding Antenna

Update Instructions

There are no reviews available for this product.

Technical Details

Full Spectrum

Full LTE Spectrum Analysis: RSSI, Quality/CINR, Multipath and full 700 MHz – 2.2 GHz or 2.0 – 5.9 GHz (choose between models).

LTE Demodulation

Full LTE demodulation including identity, cell identify group, cell identity, FDD/TDD system, normal/extended CP, number of BS, transmit antenna, PBCH channel.

Multipath Measurements

True multipath measurements, RF interference detection, peak search / hold with up to 4 peak hold waveform traces with user selectable power triggers.

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post YellowFin LTE 4G Analyzer appeared first on Berkeley Varitronics Systems.

Yellowjacket-OEM Wi-Fi Developer’s Kit

Berkeley Varitronics Systems — Wed, 10 Jul 2024 21:16:54 +0000

Yellowjacket-OEMWi-Fi Developer’s Kit

From: $0.00

Yellowjacket-Handheld™ allows RF and security professionals to scan and locate rogue access points, potential hackers and sources of RF interference all in one portable unit.

Yellowjacket-OEM Wi-Fi Developer’s Kit is an 802.11 Wi-Fi developer’s kit that includes a calibrated receiver and DLL. The calibrated receiver measures between 2.0 – 5.9 GHz covering such popular wireless bands including Wi-Fi 802.11b, 802.11a, 802.11n and 802.11g.

YELLOWJACKET®-OEM sweeps and demodulates all 802.11b/a/n/g packets providing MAC, SSID, SNR, Delay Spread, CFR and more. Berkeley’s receiver technology measures RSSI to within +1 dB of any nearby 802.11 packet on or off your network. YELLOWJACKET®-OEM module contains (1) Ethernet 10/100 Mbit port and (1) mini USB port for PC connectivity, (1) standard SMA female antenna connection, an internal 12-channel/satellite GPS receiver and necessary DLL software and documentation.

YELLOWJACKET®-OEM includes a DLL (Dynamic Link Libraries) to get any developer up and running with their own custom software development. The YELLOWJACKET®-OEM kit includes all the necessary components for creating customizable WLAN surveys, interference detection and packet traffic analysis.

DEMODULATOR SPECIFICATIONS:
Bands Supported	2.4 – 2.5 & 5.8 GHz (all 802.11b/a/n/g)
RF Sensitivity (Wide Band)	-20 to -90 dBm
Packet Demodulator	Multipath Measurement and Graphical Display
Correlated Power Measurements	% Total Power
Total Channel Power Measurement	-20 dBm : -80 dBm
PACKET DEMODULATIONChannel Scan Mode	Device MAC Address, SSID, RSSI, Channel Number, Encryption (On / Off), Data Rates, Modulation (DSSS / OFDM), Device Type (AP / NIC), Tx Packet Type & Device Packet Type Sent To / Recieved From.
SINGLE DEVICE SURVEY MODE
Packet Analysis	Relative distribution of the different packets transmitted (broadcast/ unicast / multi cast) and data rates of transmitter packets
Traffic Analysis	Relative distribution of various Tx / Rx packets (data, beacon, probe Rq. / Rsp., etc.)
MULTIPATH ANALYSIS	Percentage of total correlated power
CHANNEL SCAN SETTINGS
User Selectable	Select 14 channels in 2.4 GHz band (802.11b/g) and 27 channels in 5 GHz band (802.11a) with user selectable scan time settings per channel
Adaptive Scan	Intelligent scanning technique allows the receiver to spend more time on channels with greater Wi-Fi activity. Channel scan time increments everytime activity has been detected on a channel up to a maximum value.
SPECTRUM ANALYZER SPECIFICATIONS:
Bands Supported	2.0 – 5.9 GHz(includes 802.11b/a/n/g)
Average Noise Floor (no input)	< -100 dBm (reference level -70 dBm, resolution bandwidth=50 kHz)
Dynamic Range	> 40 dB
Level Accuracy	+ 1.5 dB (25º C)
Max Input (safe)	+ 0 dB
Max Input (no saturation)	-20 dB
Reference Level	-20 to -70 dBm (10 dB steps)
Display (iPAQ)	see Samsung Q1 Ultra specifications
Operating System	Windows® Tablet XP
TRIGGERING:
Packet/Interefrence Trigger	Trigger analyzer when input power meets or exceeds threshold (20 MHz span)
Trigger Threshold	User settable in dBm (up to 20 dB below current reference power level)
Trigger Delay	User settable in mS
GENERAL SPECIFICATIONS:
Internal GPS Receiver	12-channel, 12-satellite GPS receiver
Input Connector	SMA Female 50 ohm
External Power Supply	19VDC supply
PHYSICAL SPECIFICATIONS:
Weight	4.6 lbs.
Dimensions	3″ H x 4″ W x 8″ L (water resistant, high-impact ABS plastic case)

There are no videos available for this product.

BumbleBee/Yellowjacket-BAG PC Viewer

Standard

Version:

0.0.0

Platform:

N/A

Download Software 1.24

Download Manual 1.2

Update Instructions

There are no reviews available for this product.

Technical Details

Coverage Measurements

Measure 2.4 GHz coverage for DSSS and OFDM WLANs within the IEEE 802.11b/g standard and measure 5 GHz coverage for OFDM WLANs within the IEEE 802.11a standard.

Packet Measurements

Measures 802.11n packets and spectrum interference and Measure full 2.0 – 5.9 GHz RF spectrum analysis. Receive, filter and process DSSS and OFDM studies all in a handheld Windows Mobile OS® environment.

Feature Packed

Full Featured Spectrum Analysis including Power Triggers, Waveform Traces, Peak Hold/Search and Full Spectrum Sweep and Measure RSSI in true dBm with a calibrated receiver.

Have questions?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nunc dictum aliquet justo sit amet consectetur. In tempor lobortis ante vitae ornare. Praesent feugiat magna at tempor consequat. Aenean in iaculis libero, aliquam imperdiet mi.

732-548-3737

Request a Quote

The post Yellowjacket-OEM Wi-Fi Developer’s Kit appeared first on Berkeley Varitronics Systems.

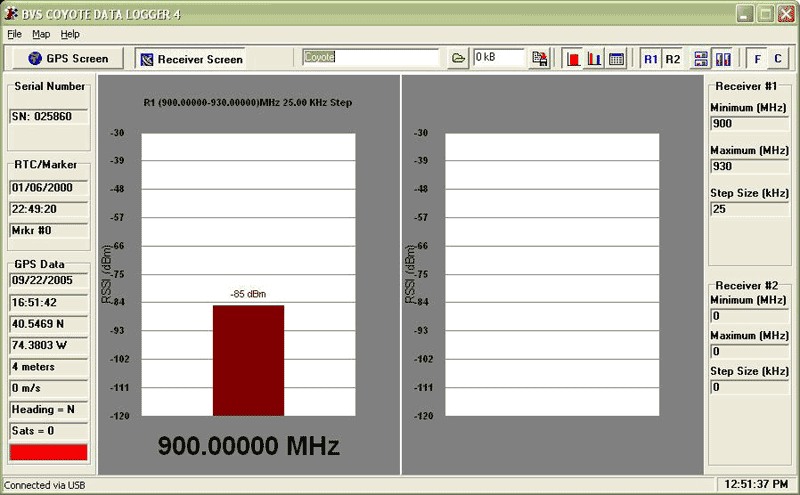

Coyote Dual Modular Receiver

Kyrie Tompkins-Overlock — Wed, 10 Jul 2024 21:16:53 +0000

CoyoteDual Modular Receiver

$0.00

Optional

Version:

0.0.0

Platform:

N/A

Download Software 2.5

Download Manual 1.5

Update Instructions

There are no reviews available for this product.

Technical Details

Multi-Band Support

Dual modular receivers allow users to swap multiple CW bands supported including Wi-MAX, Cellular, GSM, LMR, PCS, ISM, WCS, MMDS and more.

Removable & Modular

Removable 12-channel/12 satellite GPS modular receiver with active antenna, removable rechargeable Li-Ion battery and removable CF card for data storage.

High Data Rate

Captured data output via USB and serial ports for connectivity to any PC. High measurement rate, more than twice that of Dr. Lee’s recommended 40 lambda.

Support For All

Supports iBwave’s data Collection and Propagation Modules, EDX Wireless’ SignalPro® platform and optional dead reckoning software for use with Blaupunkt’s TravelPilot® DX-V and EX-V models.

Have questions?

Berkeley sales and engineering staff will answer all of your technical, delivery and pricing questions. Contact us today.

732-548-3737

Request a Quote

The post Coyote Dual Modular Receiver appeared first on Berkeley Varitronics Systems.

Wireless Test Archives - Berkeley Varitronics Systems

Octopus LPWAN Surveyor IoT Signal Meter

Octopus LPWAN SurveyorIoT Signal Meter

Technical Specifications:

Evolution of Octopus 4G Signal Meter

Octopus LPWAN Surveyor IoT Signal Meter

Technical Details

IoT Network Support

Easy To Use

Sort Your Standard

Export Data

Direction Finding

What kind of IoT can Octopus detect?

What does this kit include?

What kind of devices use IoT?

Does Octopus LPWAN export measurement data to a PC?

Buy Octopus LPWAN Surveyor IoT Signal Meter

Octopus Protective Pouch (Orange)

Octopus Protective Pouch (Black)

Octopus LPWAN Surveyor Extended Warranty (1 Year)

Octopus LPWAN Surveyor Extended Warranty (2 Year)

Octopus Direction Finding Wideband Antenna

You may also like…

Octopus 4G LTE Signal Meter Kit

Octopus Direction Finding Wideband Antenna

Have questions?

Octopus Worldwide Signal Meter

Octopus Worldwide2G/3G/4G LTE Signal Meter

Technical Specifications:

Evolution of Octopus 4G Signal Meter

Octopus Worldwide 2G/3G/4G LTE Signal Meter

Technical Details

Worldwide Cellular Support

Easy To Use

Choose Your Region

Export Data

Direction Finding

What carriers can Octopus Worldwide detect?

What does this kit include?

Does Octopus Worldwide require any kind of subscription or SIM card to operate?

Does Octopus export measurement data to a PC?

Buy Octopus Worldwide Signal Meter

Octopus Protective Pouch (Orange)

Octopus Protective Pouch (Black)

Octopus Worldwide Extended Warranty (1 Year)

Octopus Worldwide Extended Warranty (2 Year)

Octopus Direction Finding Wideband Antenna

You may also like…

Octopus 4G LTE Signal Meter Kit

Octopus Direction Finding Wideband Antenna

Have questions?

RedFrog Wideband Power Meter

RedFrogWideband Power Meter

Technical Specifications:

RedFrog Wideband Power Meter Teaser

RedFrog Wideband Power Meter

Technical Details

Wideband Measurements

Built-in Touchscreen

Power and Remote Monitoring

Internal Rechargeable Battery

Rugged & More

RedFrog Wideband Power Meter

50 Watt Termination Pad

You may also like…

Dragon Dual-Band Transmitter

Giant Tortoise multi-band transmitter

Tortoise Multi-Band Transmitter

Have questions?

Octopus 4G LTE Public Safety Signal Meter

Octopus Public Safety 4G LTE Signal Meter

Technical Specifications:

Evolution of Octopus 4G Signal Meter

Meet your new wireless installation tool

Evolution of Octopus 4G Signal Meter

Emergency First Responders Need Pro Tools

Octopus Public Safety

Octopus PC Software

Technical Details

All U.S. regional carriers
