Yellowjacket-TABLET Wi-Fi Analyzer

Yellowjacket-TABLET softwareYellowjacket-Tablet Remote Manager MAC ListYellowjacket-TABLET Wi-Fi Analyzer Remote Manager Software Temporal SweepYellowjacket-TABLET Wi-Fi Analyzer Swarm Analyzer Indoor Survey ExampleYellowjacket-TABLET Wi-Fi AnalyzerYellowjacket-TABLET Wi-Fi Analyzer

From: $9,500.00

Yellowjacket®-TABLET is both a handheld tablet PC spectrum analyzer and 802.11b/a/n/g packet demodulator. The calibrated receiver measures between 2.0 – 5.9 GHz covering such popular wireless bands including Wi-Fi, Wi-MAX, ISM, Public Safety, Bluetooth and more.

This product is built to order and typically requires 2-3 weeks for delivery.

All products include standard 1 year hardware warranty.

Yellowjacket-BANG Wi-Fi Analyzer Remote Manager MAC List

Remote Manager Wi-Fi Software

Yellowjacket-BANG Wi-Fi Analyzer Swarm Analyzer Reliability Analysis Example

Swarm Wi-Fi Mapping Coverage Software

PC Viewer Software

0 in stock (also available on backorder)

Product Description

View Data Sheetpdf-icon
View Whitepaperpdf-icon
View Manualpdf-icon

Yellowjacket-TABLET Wi-Fi Analyzer is both a handheld tablet PC spectrum analyzer and 802.11b/a/n/g packet demodulator. The calibrated receiver measures between 2.0 – 5.9 GHz covering such popular wireless bands including Wi-Fi, Wi-MAX, ISM, Public Safety, Bluetooth and more.

Powerful spectrum analysis features include user selectable power triggers, 3 pairs of markers, video smoothing, waveform averaging, 1 live trace and up to 4 peak hold waveform traces with peak hold/search. This advanced spectrum analysis allows YELLOWJACKET®-TABLET to display areas of RF interference. The receiver is a passive device and “invisible” to the network making it easier to identify hackers, rogue APs and other sorts of RF interference. Yellowjacket®-TABLET demodulates all 802.11b/a/n/g packets providing device MAC address, SSID, channel number, data rates, encryption, modulation scheme, device/packet type and more while SINGLE DEVICE SURVEY MODE supports full packet, traffic and multipath analysis. Once users have detected a specific AP or STA, they can “lock onto” those packets to locate it using an optional direction finding antenna. Unlike other packet sniffers and signal strength meters, Berkeley’s receiver technology measures RSSI to within +1.0 dB of any nearby 802.11 packet on or off your network. This realtime measurement is useful in determining total channel power, multipath and WISP antenna alignments. It even detects nearby manned drones and their pilots.

Features:

  • RF Spectrum anlaysis in your hands or on your desktop
  • Identify WiMAX, RFID, Wi-Fi, 802.11 & other ISM interference in spectrum analysis mode
  • Channel power measurements in true dBm
  • User-selectable power triggers with trigger-based spectrogram screen
  • Peak search / hold with up to 4 simultaneous peak hold waveform traces
  • Waveform JPEG snapshots (preview & printout)
  • Rugged Windows® Tablet PC GUI
  • Drone & Pilot detection (2.4 & 5 GHz drones)
  • CE certfication
  • Supports optional Swarm™ site survey mapping and Remote Manager™ software
  • Designed and manufactured in the USA
Bands Supported
2.4 – 2.5 & 5.8 GHz (all 802.11b/a/g)
RF Sensitivity (Wide Band)
-20 to -90 dBm
Packet Demodulator
Multipath Measurement and Graphical Display
Correlated Power Measurements
% Total Power
Total Channel Power Measurement
-20 dBm : -80 dBm
PACKET DEMODULATIONChannel Scan Mode
Device MAC Address, SSID, RSSI, Channel Number, Encryption (On / Off), Data Rates, Modulation (DSSS / OFDM), Device Type (AP / NIC), Tx Packet Type & Device Packet Type Sent To / Recieved From.
SINGLE DEVICE SURVEY MODE
Packet AnalysisRelative distribution of the different packets transmitted (broadcast/ unicast / multi cast) and data rates of transmitter packets
Traffic AnalysisRelative distribution of various Tx / Rx packets (data, beacon, probe Rq. / Rsp., etc.)
MULTIPATH ANALYSISPercentage of total correlated power
CHANNEL SCAN SETTINGS
User SelectableSelect 14 channels in 2.4 GHz band (802.11b/g) and 27 channels in 5 GHz band (802.11a) with user selectable scan time settings per channel
Adaptive ScanIntelligent scanning technique allows the receiver to spend more time on channels with greater Wi-Fi activity. Channel scan time increments everytime activity has been detected on a channel up to a maximum value.
SPECTRUM ANALYZER SPECIFICATIONS:
Bands Supported
2.0 – 5.9 GHz (includes 802.11b/a/n/g)
Average Noise Floor (no input)
< -100 dBm (reference level -70 dBm, resolution bandwidth=50 kHz)
Dynamic Range
> 40 dB
Level Accuracy
+ 1.5 dB (25º C)
Max Input (safe)
+ 0 dB
Max Input (no saturation)
-20 dB
Reference Level
-20 to -70 dBm (10 dB steps)
Display (iPAQ)
see Panasonic ToughBook specifications
Operating System
Windows®
TRIGGERING:
Packet/Interefrence TriggerTrigger analyzer when input power meets or exceeds threshold (20 MHz span)
Trigger ThresholdUser settable in dBm (up to 20 dB below current reference power level)
Trigger DelayUser settable in mS
GENERAL SPECIFICATIONS:
Internal GPS Receiver12-channel, 12-satellite GPS receiver
Input ConnectorSMA Female 50 ohm
Power (Internal)Lithium-Ion Polymer Cells
Runtime Internal Battery> 3 hours
Recharge Time< 3 hours
External Power Supply19VDC supply
PHYSICAL SPECIFICATIONS:
Weight4.6 lbs.
Dimensions3″ H x 4″ W x 8″ L (water resistant, high-impact ABS plastic case)
INCLUDED ACCESSORIES:
2.4 GHz Omni-Directional Antenna, 5 GHz Omni-Directional Antenna, AC/DC Power
OPTIONAL ACCESSORIES:
12V car adapter, 2.4 GHz Directional Finding Antenna, 5 GHz Directional Finding Antenna
OPTIONAL DIRECTION FINDING ANTENNA:
Frequency5150-5350 MHz
Gain5 dBi
VSWR<2 : 1
Impedence50 Ohm nominal
Beamwidth75 degree vertical, 65 degree horizontal
Front-to-Back Ratio22 dB or better
MaterialPowder-coated aluminum, ABS plastic radome
Weight1 Lb.
ConnectorSMA attached at rear of antenna
Frequency2300-2600 MHz
Gain9 dBi
Bandwidth @ 2:1 SWR200 MHz or better
Impedence50 Ohm nominal
Beamwidth75 degree vertical, 65 degree horizontal
Front-to-Back Ratio22 dB or better
MaterialPowder-coated aluminum, ABS plastic radome
Weight1 Lb.
ConnectorSMA attached at rear of antenna

multipath

Multipath

single_device

Single Device

device_scan

Device Scan

channel_frequency_response

Channel Frequency Response

antenna_alignment

Antenna Alignment

spectrum

RF Spectrum

OPTIONAL SOFTWARE SUPPORT

Swarm Analyzer Indoor Survey Example

Swarm Analyzer Indoor Survey Example

Swarm Analyzer Reliability Analysis Example

Swarm Analyzer Reliability Analysis Example

Swarm Analyzer Indoor Survey Example

Swarm Analyzer Indoor Survey Example

Remote Manager Software Temporal Sweep
Remote Manager Software Spectrum Sweep

Remote Manager Software Spectrum Sweep

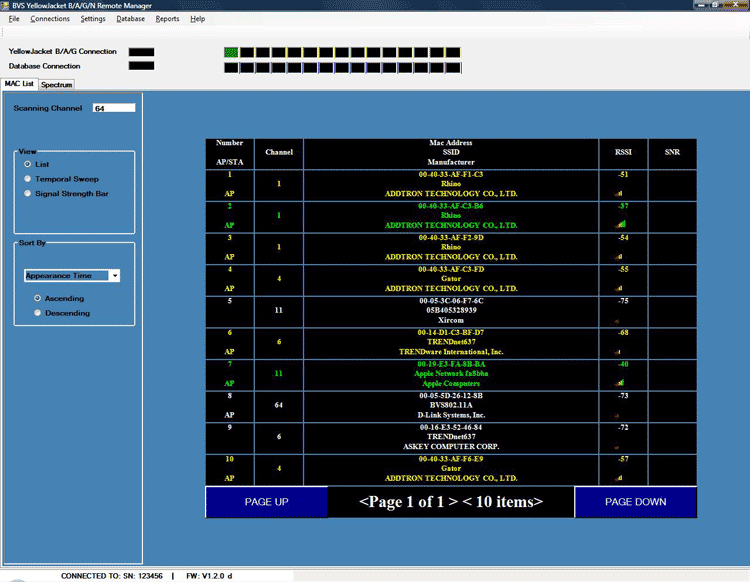

Remote Manager MAC List

Remote Manager MAC List

Does the YellowJacket-Tablet do both 802.11b/g and 802.11a studies?

Yes, the calibrated Yellowjacket receiver can detect and demodulate both 802.11b/g, 802.11a and even 802.11h (European standard) packets.

How do I get GPS data for my 802.11 measurements?

Yellowjacket-Tablet model contains an optional internal 12-channel GPS receiver for use in outdoor drive-studies for example.
