Yellowjacket-UltraWi-Fi Security Analysis Tool

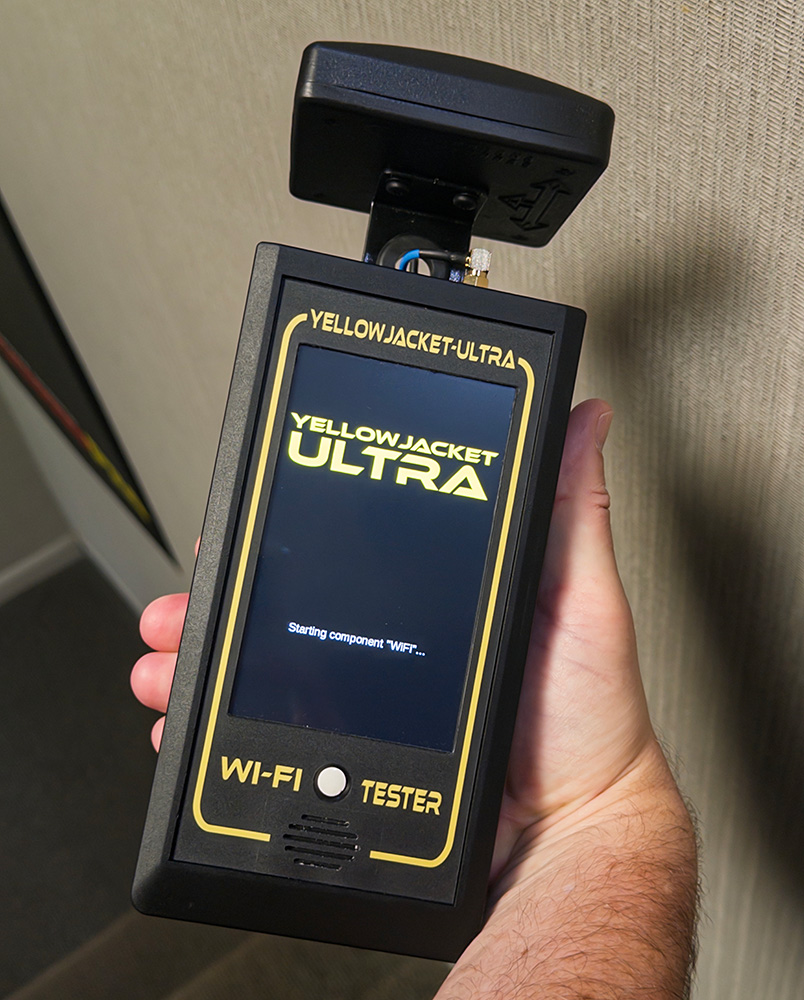

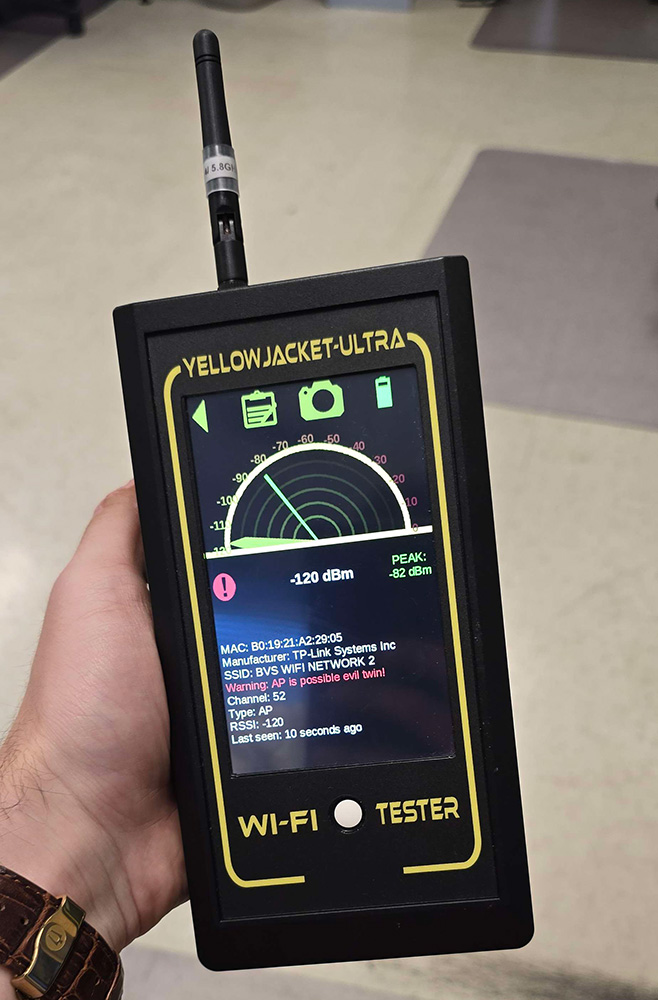

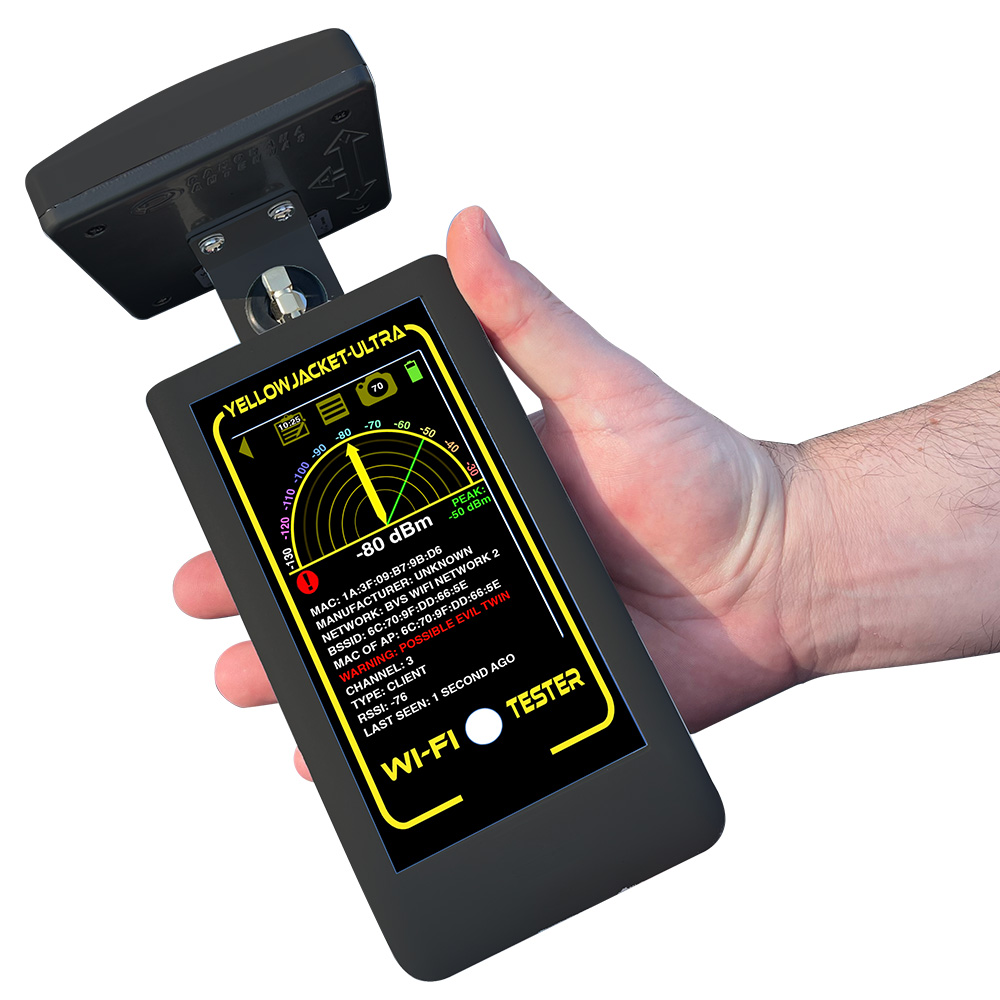

Yellowjacket-Ultra™ Wi-Fi security analysis tool is a handheld analyzer that detects, analyzes and locates hidden or rogue Wi-Fi clients and access points. The ultra-sensitive receiver analyzes and directionally locates 2.4 GHz and 5.8 GHz spectrum and demodulated packets that should not be found in secured or confidential areas including government/correctional/testing facilities, SCIFs, board rooms, medical centers and more. Yellowjacket-Ultra’s touchscreen interface, closed loop charging/data system and included directional finding antenna ensures users to securely collect data for wireless audits, penetration testing and regular security sweeps.

Yellowjacket-Ultra enables high resolution direction finding for both client devices and access points through a highly sensitive receiver, wideband direction finding antenna and software optimized for pinpointing wireless threats. Users can create customized whitelists allowing daily sweeps by any security personnel. All logged data is stored internally but requires special software to prevent exfiltration as well as a physical switch allowing USB-C charging but not any data transfer unless the user explicitly wants this. This ensures data integrity throughout the entire wireless audit process.

Advanced features include ‘active ping’ which wakes up hidden Wi-Fi devices, forcing them to communicate and to be located. ‘Evil twin’ warnings alert users to the possibility of malicious access points or clients mimicking friendly devices in order to surreptitiously attack networks.

Technical Specifications:

Countries/Regions Supported:

U.S., U.S. iDEN, U.S. FirstNet, GTMO, Canada, EU, Australia, New Zealand, Israel, Sweden, Brazil, Japan, China, Chile, India, South Korea, Trinidad, Pakistan, Philippines

FREQUENCY RANGE 690 MHz to 2700 MHz and 4.9 – 5.9 GHz (covers all cellular devices, Wi-Fi  and Bluetooth and BLE)

SPECIFICATIONS
RF BANDS SUPPORTED	2.4-2.5, 5.8 GHz (all 802.11b / a / h / g / n)
RF SENSITIVITY (Wide Band)	-20 to -90 dBm
CHANNELS SUPPORTED	(802.11b/g/n) 1,2,3,4,5,6,7,8,9,10,11 (802.11a/h/n) 36,40,44,48,52,56,60,64,149,153,157,161,165
STANDOUT FEATURES	2.4 GHz Wi-Fi Channels: 1,2,3,4,5,6,7,8,9,10,11
ACTIVE PING	Enables high resolution direction finding for both client devices and access points
WHITELISTING	Comprehensive list dynamically identifies all known and unknown devices
DIRECTION FINDING	Integrated wideband directional antenna to pinpoint hidden Wi-Fi devices
HARDWARE DATA INTEGRITY	Data stored internally requires special software and to prevent exfiltration
HARDWARE DATA INTEGRITY 2	Physical switch allows charging but disconnects USB-C port from any data transfer
GENERAL SPECIFICATIONS
DISPLAY / INTERFACE	480 x 800 pixel resistive touch screen
INTERNAL GPS RECEIVER	12-channel GPS receiver
INPUT CONNECTOR	SMA Female, 50 Ohm
POWER (INTERNAL)	Lithium Polymer-Ion
RUNTIME INTERNAL BATTERY	4-5 hours
RECHARGE TIME	< 5 hours
EXTERNAL POWER SUPPLY	USB-C fast charging power adapter
WEIGHT	3 lbs. (with DF antenna attached)
DIMENSIONS	3”H x 4”W x 10”L (water resistant, high impact ABS plastic case)

There are no reviews available for this product.

Does Yellowjacket-Ultra detect bluetooth or cellular signals?

No. Yellowjacket-Ultra is designed for wireless security experts but only analyzes Wi-Fi.
